WRO 2026 — Robot Rockstars
Game Mat Planner

Elementary Mat Size · 2362 × 1143 mm
Aspect · 2.066 : 1
Reference Grid · 50 mm
Source · official PNG/SVG

The official WRO RoboMission Elementary game mat measures 2362 mm × 1143 mm (General Rules §7.2, ± 5 mm tolerance per dimension). The overlay adds a 50 mm reference grid, edge ruler, and labelled call-outs for every named area in the rules. Use the toolbar to measure distances, plan robot paths, check turn angles, and place a robot footprint. Click EXPORT CODE to convert a planned path into starter Python or Word Blocks pseudocode. Coordinates use a top-left origin (0, 0).

mm
click on mat · ENTER finish path · ESC cancel · DEL undo last
— , — mm

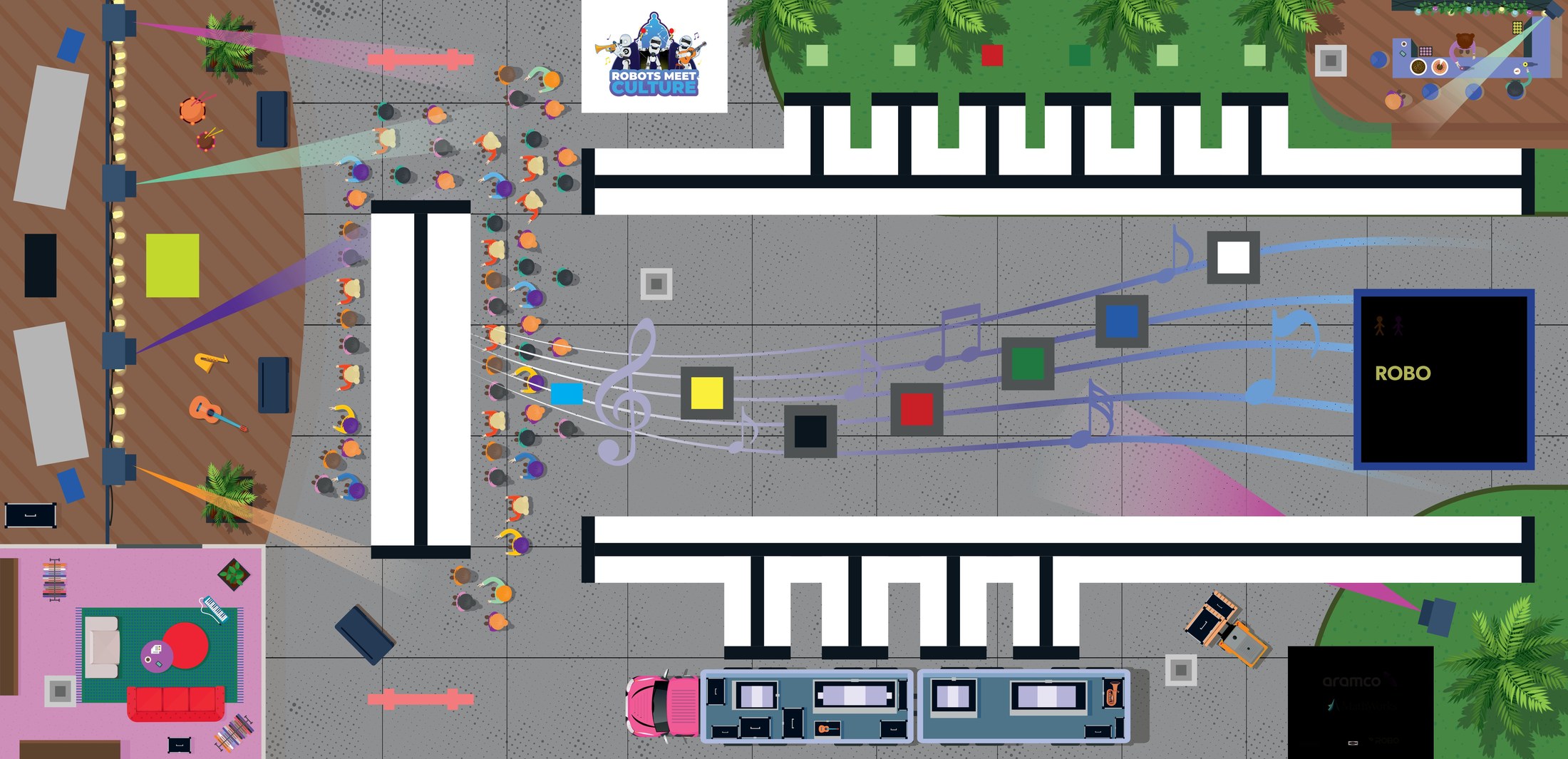

WRO 2026 Robot Rockstars game mat

Mat dimensions

Width
2362 mm (≈ 92.99 in)
Height
1143 mm (≈ 45.00 in)
Aspect
2.066 : 1
Tolerance
± 5 mm per dimension
Border height
50 mm (table wall)

Reference grid

Minor
50 mm (faint white)
Major
200 mm (brighter white)
Edge ticks
100 mm, labelled every 500 mm
Origin (0,0)
top-left corner of mat
Centre
(1181, 571.5) mm

Key zones (mm, top-left origin)

Zone legend

  • Robot start area
  • Cable targets · stage
  • Mic target · truck (instruments)
  • Notes start & staff targets
  • Backstage · clef start
